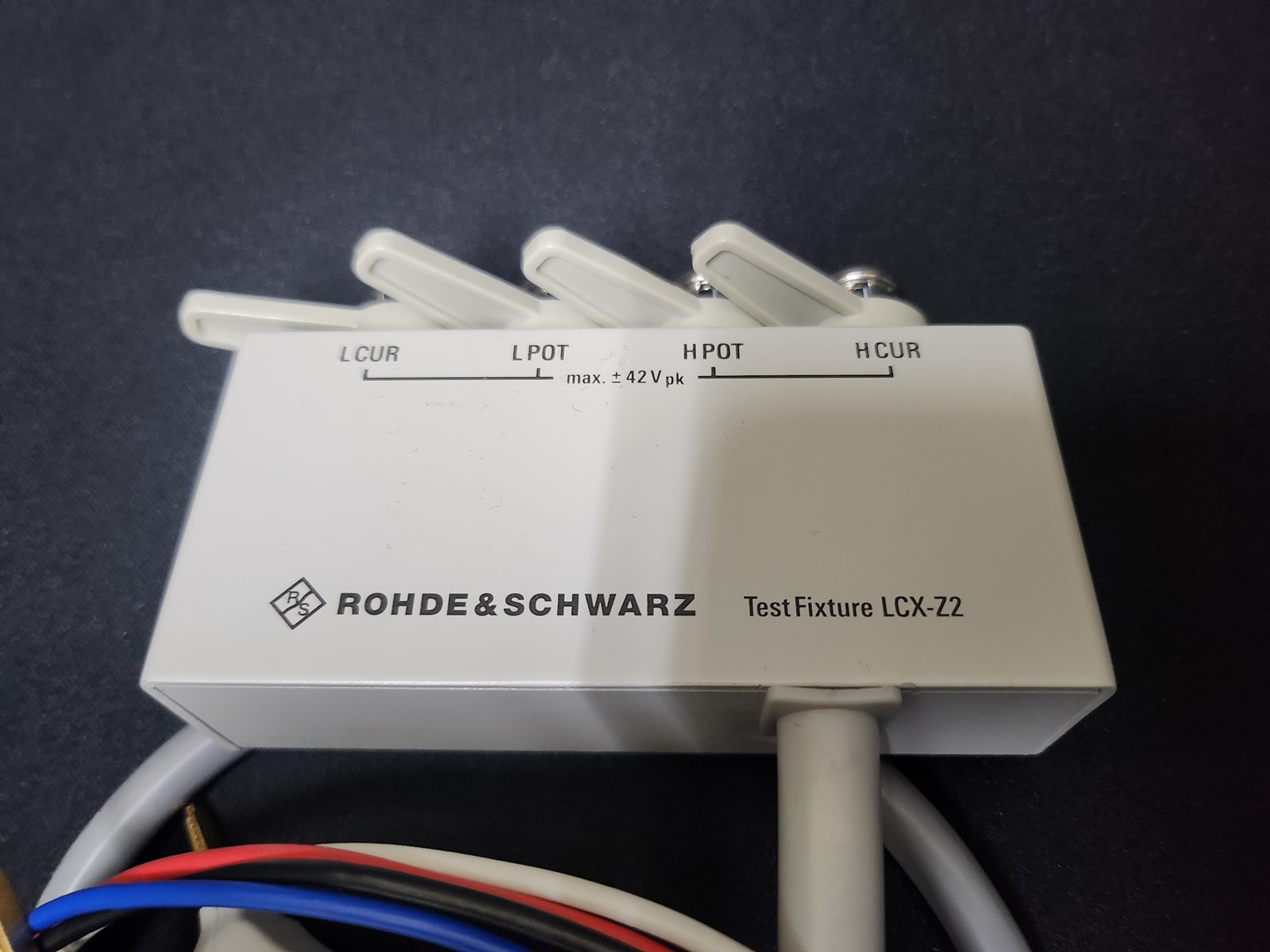

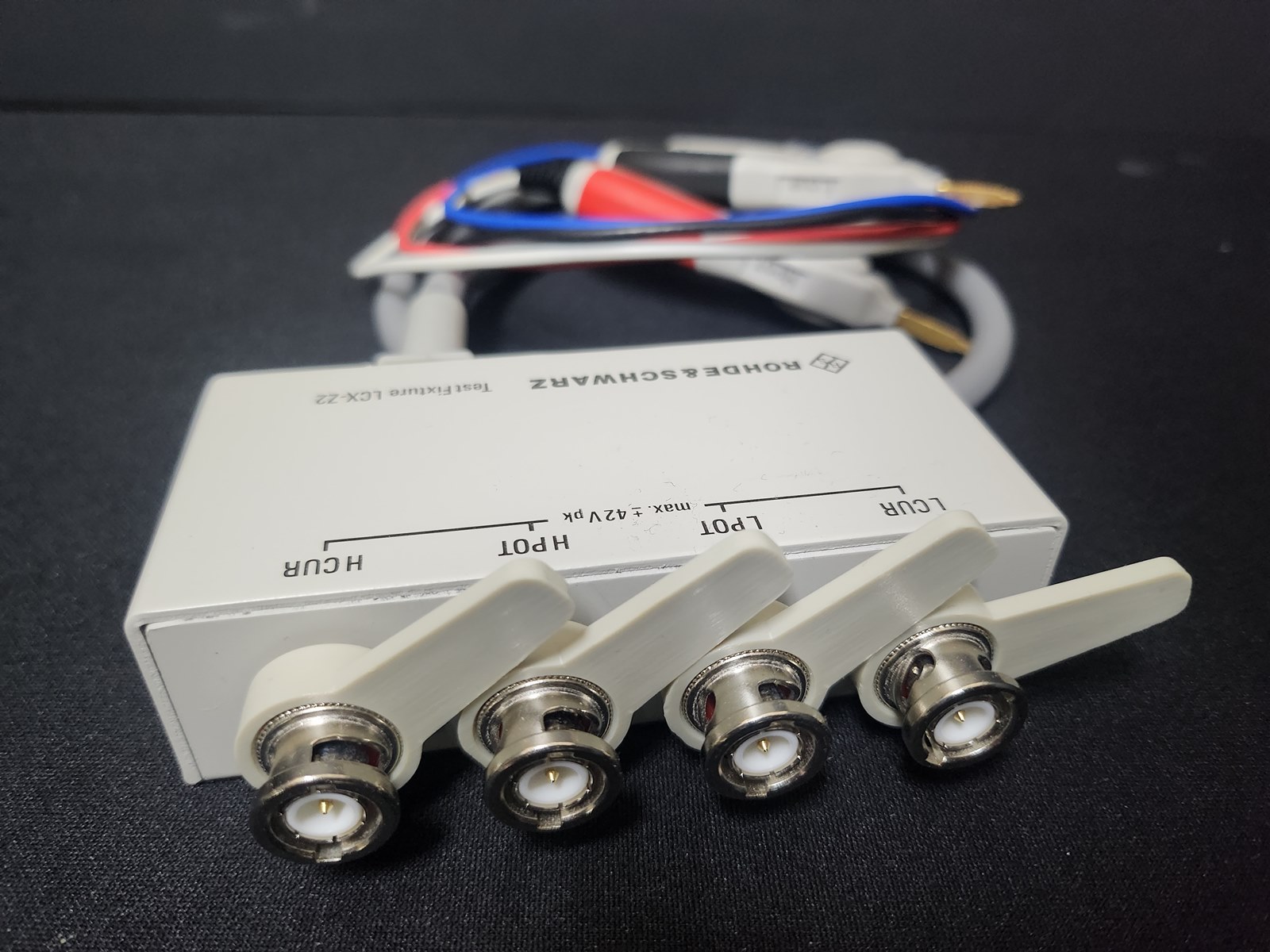

LCX-Z2

Kelvin clip lead for LCX series LCR meters

The Kelvin clips of the R&S®LCX-Z2 are used for connecting components which, e.g. due to their size, cannot be tested using conventional test fixtures. The two clip parts of each Kelvin clip are isolated from each other and there fore connected separately to the CUR and POT lines. This ensures that the two test leads are only connected directly at the DUT.
