RF Cable GL140s

型番GL140s
メーカー Gigalane
状況調達可能
保証別途お打合せ

お問い合わせください

製品詳細説明
製品のお問い合わせ

概要
主要特長
主要仕様
資料ㆍカタログ
メーカー紹介

概要

GL140sC : Flexible Low Loss Microwave Cable, Low density PTFE(extruded) dielectric, 40GHz, Diameter 4.1mm

GL140sD : Flexible Low Loss Microwave Cable, Low density PTFE(extruded) dielectric, 18GHz, Diameter 5.7mm

GL140sE : Flexible Low Loss Microwave Cable, Low density PTFE(extruded) dielectric, 26.5GHz, Diameter 5.7mm

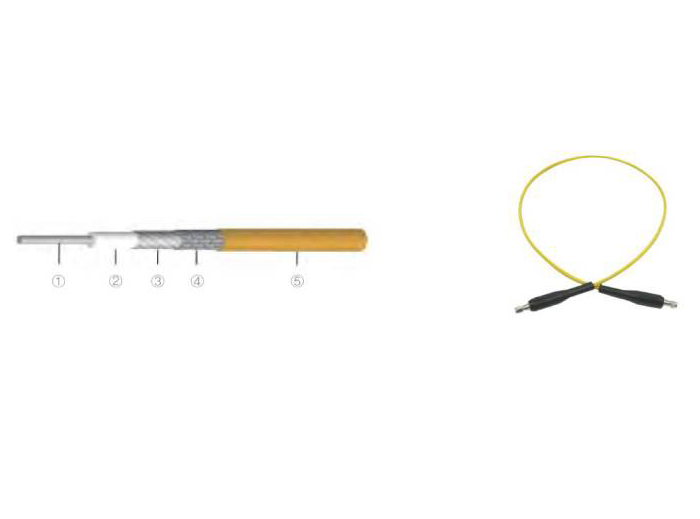

Cable Design

Description		Diameter (mm)
① Center conductor	Silver-plated copper wire, stranded	19/0.2
② Dielectric	Low density PTFE (extruded)	–
③ Inner shield	Silver-plated copper tape	–
④ Outer shield	Silver-plated copper braid	–
⑤ Jacket	Extruded FEP	4.20

主要特長

Frequency ranges from DC to 40 GHz
Low density PTFE(extruded) dielectric
Low Loss and Flexibility
Excellent shielding effectiveness and return loss
Durability
Cost-efficient

主要仕様

	GL140sC	GL140sD	GL140sE
Category	Cable	Cable	Cable
Type1	Flexible	Flexible	Flexible
Freq.	40GHz	26.5GHz	40GHz
Series	GL(Low-loss)	GL(Low-loss)	GL(Low-loss)
Applicable Connector	SMS112, SMS112B	SMS111, SMS111B, SMR111, NMS111, NFS111(Jack), NMR111, G24SMC001	SMS112, SMS112B
Attenuation[dB/m]	1.43	1.15	1.43
Capacitance[pF/m]	85pF/m	85pF/m	85pF/m
VP[%]	77	77	77
Time Delay[ns/m]	4.35	4.35	4.35
RF leakage[dB]	-100	-100	-100
Dielectric constant	1.7	1.7	1.7
Phase stability vs. flexure	5°	5°	5°
IL stability vs. flexure (dB @minimum BR)	±0.3	±0.3	±0.3
Phase stability vs. temp. (deg/GHz/m) (-40 ~ 80°)	5°	5°	5°
Minimum bend radius (mm)	29.2	29.2	29.2
Weight (g/m)	75	75	75
Temperature	-45°c to + 125°c	-45°c to + 125°c	-45°c to + 125°c
Dielectric	Low density PTFE (extruded)	Low density PTFE (extruded)	Low density PTFE (extruded)
Inner Shield	Silver-plated copper tape	Silver-plated copper tape	Silver-plated copper tape
Outer Shield	Silver-plated copper braid	Silver-plated copper braid	Silver-plated copper braid
Center Conductor	Silver-plated copper wire, solid	Silver-plated copper wire, solid	Silver-plated copper wire, solid
Center Conductor Diameter [mm]	1.39	1.39	1.39
Jacket	Extruded FEP	Extruded FEP	Extruded FEP
Jacket Diameter[mm]	5.7	5.7	5.7
Description	Flexible Low Loss Microwave Cable, Low density PTFE(extruded) dielectric, 26.5GHz, Diameter 5.7mm	Flexible Low Loss Microwave Cable, Low density PTFE(extruded) dielectric, 26.5GHz, Diameter 5.7mm	Flexible Low Loss Microwave Cable, Low density PTFE(extruded) dielectric, 26.5GHz, Diameter 5.7mm
