PHASE MICRO® Microwave Test Cable Assemblies PHASE MICRO®
- 型番PHASE MICRO®
- メーカーOSI
- 状況調達可能
- 保証別途お打合せ
お問い合わせください
概要

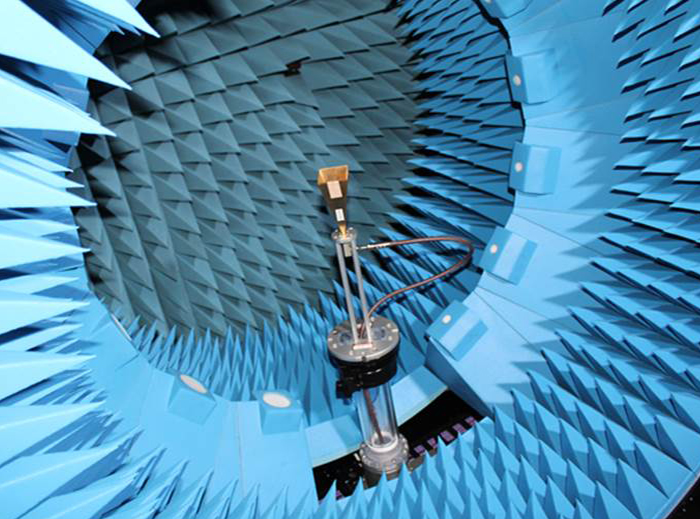

OSI’s PHASE MICRO Microwave Test Cable Assemblies are designed to offer optimal, durable, precision test & measurement interconnect solution where in application requires reliability and stability is a key factor. Longer life time with consistencyof performance, which results in more return in total cost of ownership, most of users indicate.
Excellent electrical performance comes from PHASE MICRO’s unique cable construction with optimum RF connector design available in 3.5mm and 2.92mm connections.
Advantage of PHASE MICRO
- Rugged cable construction maximizes physical endurance limit where crushing, compression, kinking and repeatable flex cycles are in continuous use.
- Extreme low loss in attenuation and VSWR guarantee dependable performance.
- Increased Phase stability in frequent flex cycles and over broad range of temperature offer precision test & measurement.
- Enhanced Amplitude Stability provides longer calibration interval.
Your Guaranteed Quality
All PHASE MICRO cable assemblies are fully tested and inspected prior to releasing to customers and OSI offers a warranty program within range of warranty policy for guaranteed quality. Materials and fabrication process are in progress under tight quality assurance program. ROHS compliant. Stock assemblies in length of 0.6m and 1.0m are available for next day shipment.
主要特長
- Amplitude Stability in insertion loss up to ±0.03 dB
- Phase Stability of 3° at Maximum Covering Frequency
- Ruggedizied Construction provides excellent electrical performance against crushing, compression, kinking, repeatable flex cycles,temperature up to 150°C
- Excellent solution for VNA Test under harsh environment at precision measurement is in demand.
- Semiconductor On-Wafer Test Application where electrical stability is a key requirement.
仕様
| Specification | E13M | E14M | E20 |
|---|---|---|---|
| Operating Frequency | DC ~ 50 GHz | DC ~ 40 GHz | DC ~ 26.5 GHz |
| Maximum VSWR | 1.30:1 | 1.25:1 | 1.25:1 |
| Impedance (Nominal) | 50 Ohms | ||
| Amplitude Stability in Insertion Loss | ＜ ± 0.05dB | ||
| Phase Stability vs Temperture | 6° | 3° | 2° |
| Attenuation at Max Frequency | -3.8dB | -2.9dB | -1.6dB |
| Velocity of Propagation | 77% | 83% | 83% |
| Shield Effectiveness (Through 18Ghz) | ＜ 100 dB | ||
| Time Delay (Nominal) ns/cm | 4.25 | 3.95 | 3.95 |
| Temperature Ranges (°c) | –55° ~ +150° | ||
| Minimum Bend Radius | 18mm | 20mm | 28mm |
| Crush Resistance (kg-f/cm) | 41.2 | ||
価格
| Freq. | Type | P35 E14 | P35 E13M | ||||
|---|---|---|---|---|---|---|---|
| 100 Cm | 80 Cm | 60 Cm | 100 Cm | 80 Cm | 60 Cm | ||
| 26.5GHz | 3.5mm(m) to 3.5mm(m) | ￦350,000 | ￦327,000 | ￦304,000 | |||
| 3.5mm(f) to 3.5mm(m) | ￦384,000 | ￦360,000 | ￦337,000 | ||||
| 3.5mm(f) to 3.5mm(f) | ￦417,000 | ￦394,000 | ￦370,000 | ||||
| 40GHz | 2.4mm(m) to 2.4mm(m) | ||||||
| 2.4mm(f) to 2.4mm(m) | |||||||
| 2.4mm(f) to 2.4mm(f) | |||||||
| K(m) to K(m) | ￦384,000 | ￦360,000 | ￦337,000 | ||||
| K(f) to K(m) | ￦417,000 | ￦394,000 | ￦370,000 | ||||
| K(f) to K(f) | ￦450,000 | ￦427,000 | ￦404,000 | ||||
| 50GHz | 2.4mm(m) to 2.4mm(m) | ￦484,000 | ￦460,000 | ￦437,000 | |||
| 2.4mm(f) to 2.4mm(m) | ￦517,000 | ￦494,000 | ￦470,000 | ||||
| 2.4mm(f) to 2.4mm(f) | ￦550,000 | ￦527,000 | ￦504,000 | ||||
資料ㆍカタログ
| TITLE | DOWNLOADS |
|---|---|
| OSI Catalogue (english) | download |
About OSI
Right from the dielectric core design & manufacturing
to complete coaxial cable assemblies, OSI is fully qualified for your test and measurement application.
OSI’s microwave cable assemblies and coaxial adapters can cover up to 50GHz.
With velocity of propagation up to 83%, OSI’s unique cable construction design will provide excellent electrical performance in lower attenuation,
phase and delay stability against environmental factors either in continuous flexures and temperature cycles.
A key factor, maintained electrical stability over time results in more return in total cost of ownership, most of customers indicate.
